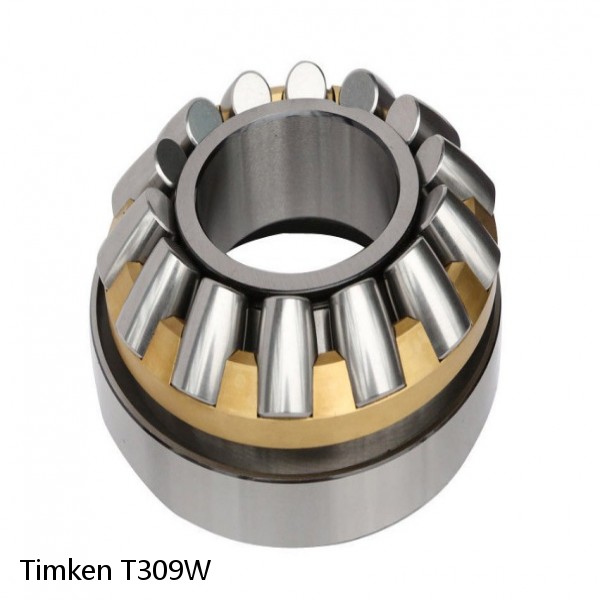

T309W Timken Thrust Roller Bearings image

T309W Timken Thrust Roller Bearings Dimensions

UPC Code:0883450504362
Type E Closed Cover Number:EUC-J
Dimension B:6-3/4 in
Dimension L:16-5/8 in
Dimension A:4-5/8 in
Dimension J Min.:13-5/16 in
Dimension J Max.:13-11/16 in
Bolt Diameter:3/4 in
Dimension N:15/16 in
Dimension N1:1-1/8 in
Dimension N2:2-1/2 in
Dimension H1:2-3/4 in
Dimension H2:9-3/8 in
Dimension d1:6-47/64 in
Dimension H:4-3/4 in
Dimension Ac:6.263 in
Dimension d2:8.25 in
e:0.53
X (if Fa/Fr ≤ e):0.87
Y (if Fa/Fr ≤ e):1.63
X (if Fa/Fr > e):0.7
Y (if Fa/Fr > e):1.97
K Factor:1.13
C90 Dynamic Load Rating1:33000 lb
C0 Static Load Rating:188400 lb
Fa-max Maximum Permissible Thrust Load2:6908 lb
Fr-max Maximum Allowable Slip Fit Radial Load3:27000 lb
Max. Speed4:1360 rpm
Note:Note: All units have a 1/8 pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occur
