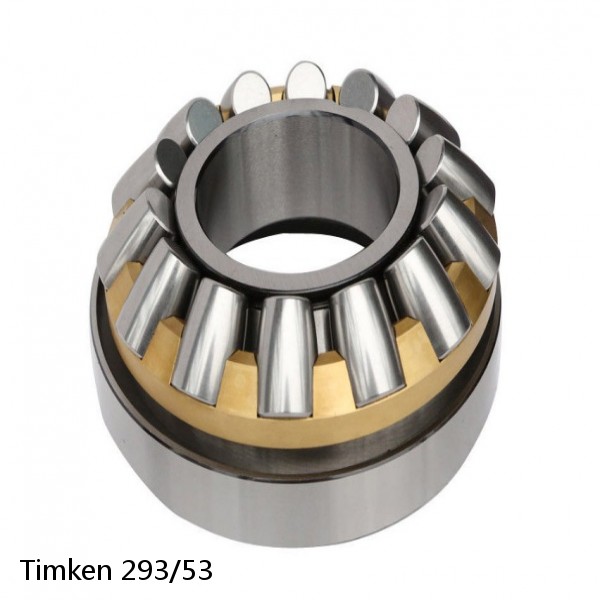

293/53 Timken Thrust Roller Bearings image

Back to product page

293/53 Timken Thrust Roller Bearings Dimensions

Mass (without HJ ring):7.89 kg
Dynamic load, C:299 kN
Static load, C0:335 kN
Fatigue limit load, Cu:35.6 kN
Nlim (oil):3,800 rpm
Nlim (grease):3,300 rpm
Min operating temperature, Tmin:-40 °C
Max operating temperature, Tmax:120 °C
Characteristic cage frequency, FTF:0.41 Hz
Characteristic rolling element frequency, BSF:5.45 Hz
Characteristic outer ring frequency, BPF0:5.34 Hz
Characteristic inner ring frequency, BPFI:7.66 Hz
da min:113 mm
da max:125 mm
db min:132 mm
Da max:202 mm
ra max:2.5 mm
r1a max:2.5 mm
Category:Cylindrical Roller Bearing
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:7.4
Product Group:B04144
Bore Profile:Straight
Cage Material:Steel
Precision Class:RBEC 1 | ISO P0
Number of Rows of Rollers:Single Row
Separable:Inner Ring - Both Sides
Rolling Element:Cylindrical Roller Bearing
Profile:Complete with Outer and Inner Ring
Snap Ring:No
Internal Clearance:C3-Loose
Retainer:Yes
Relubricatable:Yes
Inch - Metric:Metric
Other Features:Plain Inner Ring | 2 Rib Outer Ring | Cage On Outer Ring ID
Long Description:100MM Bore; Straight Bore Profile; 215MM Outside Diameter; 47MM Width; Steel Cage Matetrial; RBEC 1 | ISO P0; Single Row; Inner Ring - Both Sides Separable; No Snap Ring; Relubricatable; C3-Loose Inte
UNSPSC:31171547
Harmonized Tariff Code:8482.50.00.00
Noun:Bearing
Manufacturer Item Number:NU320C3
Weight / LBS:16.288
Outside Diameter:8.465 Inch | 215 Millimeter
Bore:3.937 Inch | 100 Millimeter
Width:1.85 Inch | 47 Millimeter
bore diameter::100 mm
precision rating::ISO Class 0
outside diameter::215 mm
maximum rpm::3800 rpm
overall width::47 mm
bearing material::Hardened Alloy Steel
flanges::(2) Outer Ring
cage material::Pressed Steel
bore type::Straight
finish/coating::Uncoated
number of rows::1
closure type::Open
internal clearance::C3
outer ring width::47 mm
ring separation::Separable Inner Ring
fillet radius::2.5 mm
operating temperature range::-40 to 120 ºC
series::NU
dynamic load capacity::299000 N
manufacturer product page::Click here
static load capacity::335000 N
