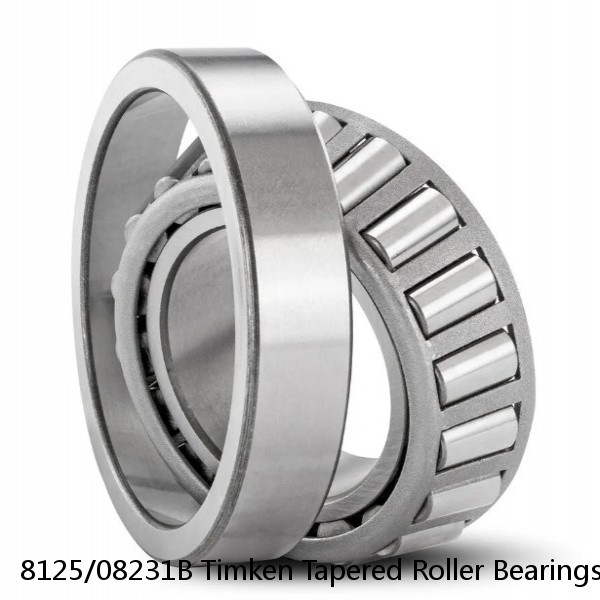

8125/08231B Timken Tapered Roller Bearings image

Back to product page

You Might Also Like

8125/08231B Timken Tapered Roller Bearings Systems

B - Cone Width:48 mm
C - Cup Width:38 mm
B:48.000 mm
R - Cone Backface To Clear Radius1:2.540 mm
r - Cup Backface To Clear Radius2:2.03 mm
da - Cone Frontface Backing Diameter:130.05 mm
db - Cone Backface Backing Diameter:134.11 mm
Da - Cup Frontface Backing Diameter:172 mm
Db - Cup Backface Backing Diameter:166.12 mm
Ab - Cage-Cone Frontface Clearance:3.3 mm
Aa - Cage-Cone Backface Clearance:3.8 mm
a - Effective Center Location3:-11.9 mm
C90 - Dynamic Radial Rating (90 million revolutions)4:108000 N
C1 - Dynamic Radial Rating (1 million revolutions)5:418000 N
C0 - Static Radial Rating:603000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6:56600 N
K - Factor7:1.91
e - ISO Factor8:0.31
Y - ISO Factor9:1.97
G1 - Heat Generation Factor (Roller-Raceway):342
G2 - Heat Generation Factor (Rib-Roller End):93.7
Cg - Geometry Factor:0.113
