Home>Products>Tapered Roller Bearings>2872/02820/Q SKF Tapered Roller Bearings image

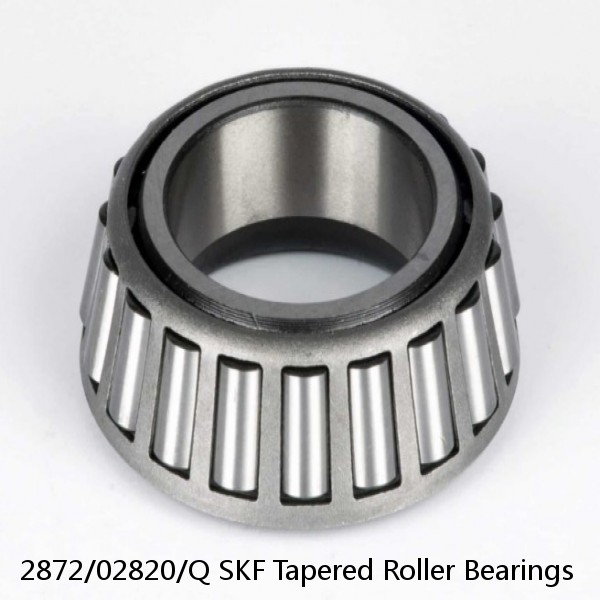

2872/02820/Q SKF Tapered Roller Bearings image

Back to product page

You Might Also Like

2872/02820/Q SKF Tapered Roller Bearings Systems

C:22,200 mm
d1:32.5 mm
D1:43.9 mm
a:34 mm
Contact angle α:32 °
rs min:1.1 mm
Radial clearance class:CN
Precision class:P0
Mass:0.23 kg
Dynamic load, C:20.6 kN
Static load, C0:18.4 kN
Fatigue limit load, Cu:1.21 kN
f0:14.3
Nref:9,000 rpm
Nlim:13,000 rpm
Min operating temperature, Tmin:-40 °C
Max operating temperature, Tmax:120 °C
Characteristic cage frequency, FTF:0.41 Hz
Characteristic rolling element frequency, BSF:4.43 Hz
Characteristic outer ring frequency, BPF0:4.89 Hz
Characteristic inner ring frequency, BPFI:7.11 Hz
da min:26.5 mm
Da max:45.5 mm
ra max:1 mm
