Home>Products>Tapered Roller Bearings>30212-A FAG Tapered Roller Bearings image

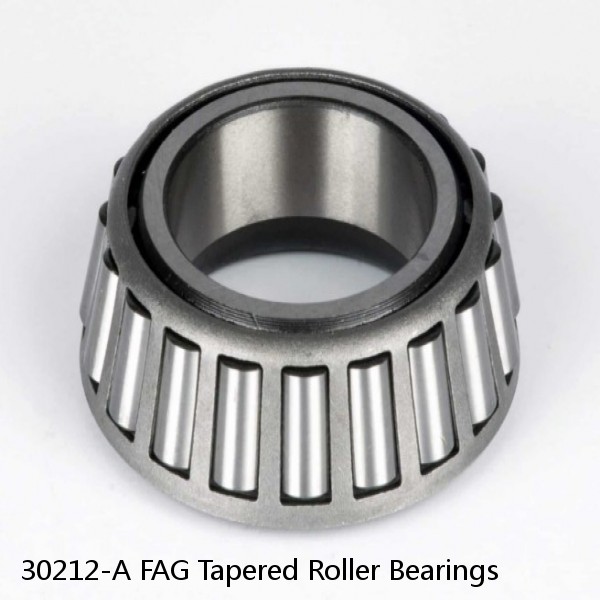

30212-A FAG Tapered Roller Bearings image

Back to product page

You Might Also Like

30212-A FAG Tapered Roller Bearings Systems

B - Cone Width:29.000 mm
C - Cup Width:23.000 mm
B:29.000 mm
R - Cone Backface To Clear Radius1:1.5 mm
r - Cup Backface To Clear Radius2:1.5 mm
da - Cone Frontface Backing Diameter:124.97 mm
db - Cone Backface Backing Diameter:132.08 mm
Da - Cup Frontface Backing Diameter:162.10 mm
Db - Cup Backface Backing Diameter:152.91 mm
Ab - Cage-Cone Frontface Clearance:0 mm
Aa - Cage-Cone Backface Clearance:0 mm
a - Effective Center Location3:0 mm
C90 - Dynamic Radial Rating (90 million revolutions)4:46500 N
C1 - Dynamic Radial Rating (1 million revolutions)5:179000 N
C0 - Static Radial Rating:308000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6:27800 N
K - Factor7:1.68
e - ISO Factor8:0.35
Y - ISO Factor9:1.72
G1 - Heat Generation Factor (Roller-Raceway):#N/A
G2 - Heat Generation Factor (Rib-Roller End):#N/A
Cg - Geometry Factor:0.133
