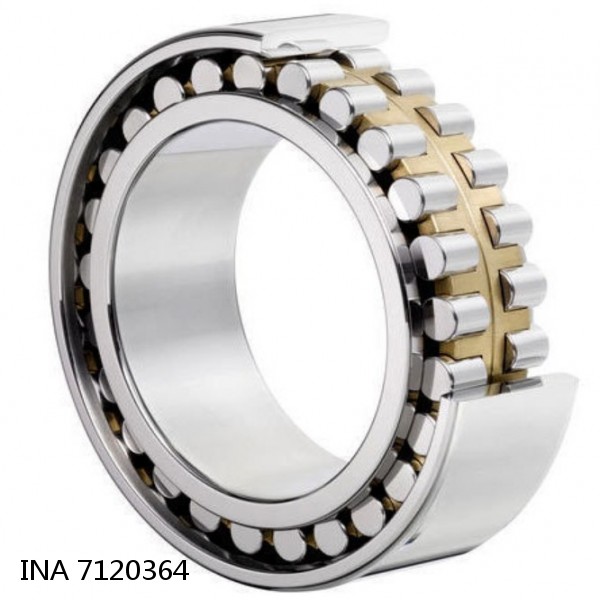

7120364 INA Cylindrical Roller Bearings image

Back to product page

You Might Also Like

7120364 INA Cylindrical Roller Bearings Description of the code

k:16 mm
Associated sleeve reference:H3176
e:0.31
Y1:2.16
Y2:3.22
Y0:2.12
Radial clearance class:C3
Dynamic load, C:3,900 kN
Static load, C0:7,500 kN
Fatigue limit load, Cu:515 kN
Nref:530 rpm
Nlim:850 rpm
Min operating temperature, Tmin:-40 °C
Max operating temperature, Tmax:120 °C
Characteristic cage frequency, FTF:0.44 Hz
Characteristic rolling element frequency, BSF:8.4 Hz
Characteristic outer ring frequency, BPF0:10.18 Hz
Characteristic inner ring frequency, BPFI:12.82 Hz
da min:400 mm
db min:401 mm
Ce min:15 mm
Da max:600 mm
ra max:4 mm
Category:Bearings
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / US pound:542.337
Product Group:B04311
