Home>Products>Complex Bearings>ZARN1545-L-TV INA Complex Bearings image

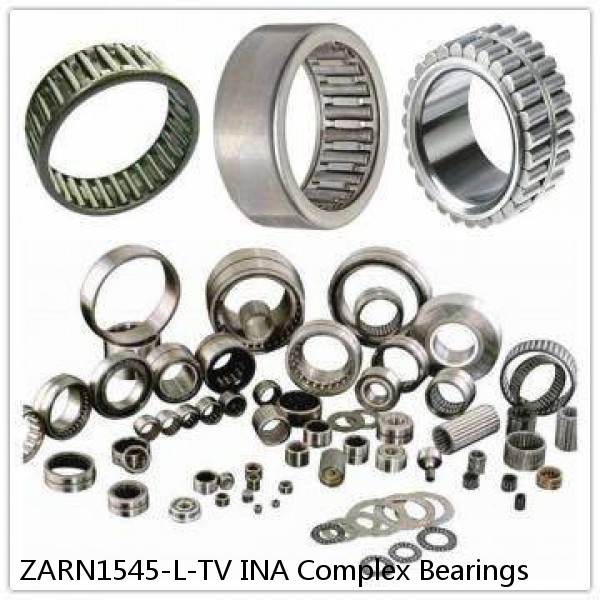

ZARN1545-L-TV INA Complex Bearings image

Back to product page

You Might Also Like

ZARN1545-L-TV INA Complex Bearings Product Features

B - Cone Width:14.381 mm
C - Cup Width:11.113 mm
B:14.379 mm
R - Cone Backface To Clear Radius1:0.760 mm
r - Cup Backface To Clear Radius2:1.52 mm
da - Cone Frontface Backing Diameter:22.61 mm
db - Cone Backface Backing Diameter:23.11 mm
Da - Cup Frontface Backing Diameter:42.93 mm
Db - Cup Backface Backing Diameter:40.39 mm
Ab - Cage-Cone Frontface Clearance:1.8 mm
Aa - Cage-Cone Backface Clearance:-0.3 mm
a - Effective Center Location3:-4.1 mm
C90 - Dynamic Radial Rating (90 million revolutions)4:1560 lbf
C1 - Dynamic Radial Rating (1 million revolutions)5:6010 lbf
C0 - Static Radial Rating:5720 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions)6:952 lbf
K - Factor7:1.64
e - ISO Factor8:0.36
Y - ISO Factor9:1.68
G1 - Heat Generation Factor (Roller-Raceway):5.8
G2 - Heat Generation Factor (Rib-Roller End):5.5
Cg - Geometry Factor:0.0448
