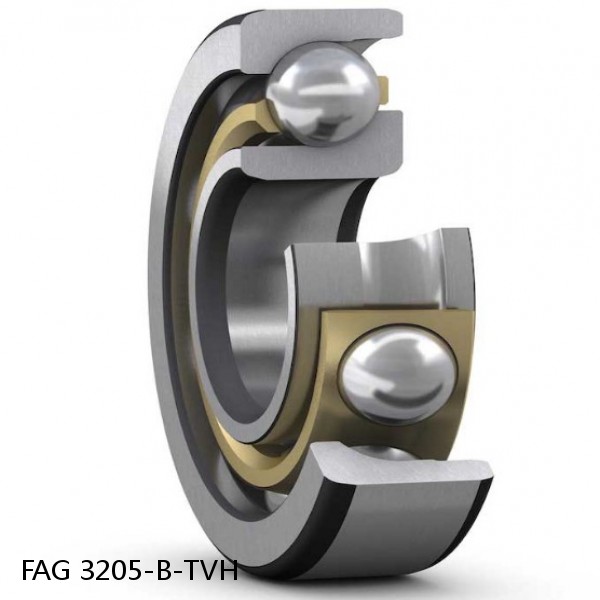

3205-B-TVH FAG Angular Contact Ball Bearings image

Back to product page

3205-B-TVH FAG Angular Contact Ball Bearings Sponsored Products Related To This Item

C:8 mm
Angle (α):15 °
Category:Miniature Precision Ball Bearings
Inventory:0.0
Minimum Buy Quantity:N/A
Weight / Kilogram:0.018
Product Group:B04270
Enclosure:Open
Precision Class:ABEC 7 | ISO P4
Flanges:No
Material - Ball:Steel
Race Material:Steel
Raceway Style:1 Rib Outer Ring
Number of Bearings:1 (Single)
Contact Angle:15 Degree
Preload:Light
Cage Material:Nylon
Rolling Element:Ball Bearing
Mounting Arrangement:Universal
Flush Ground:Yes
Inch - Metric:Metric
Other Features:Single Row | Angular Contact
Long Description:10MM Bore; 26MM Outside Diameter; 8MM Inner Race Width; 8MM Outer Race Width; Open Enclosure; ABEC 7 | ISO P4 Precision; No Flange; Steel Ball Material; Steel Race Material; 1 (Single) Bearing
UNSPSC:31171531
Harmonized Tariff Code:8482.10.50.28
Noun:Bearing
Keyword String:Angular Contact Ball
Manufacturer Item Number:7000CG/GNP4
Weight / LBS:0.04
Bore:0.394 Inch | 10 Millimeter
Inner Race Width:0.315 Inch | 8 Millimeter
Outside Diameter:1.024 Inch | 26 Millimeter
Flange Outside Diameter:0 Inch | 0 Millimeter
Outer Race Width:0.315 Inch | 8 Millimeter
bore diameter::10 mm
radial static load capacity::2200 N
outside diameter::26 mm
operating temperature range::-40 to 120 ºC
overall width::8 mm
cage material::Nylon
contact angle::15 °
maximum rpm::46000 rpm
row type & fill slot::Single-Row Non-Fill Slot
finish/coating::Uncoated
bore type::Round
precision rating::ISO Class 4
closure type::Open
fillet radius::0.3 mm
snap ring included::Without Snap Ring
weight::0.018 kg
bearing material::High Carbon Chrome Steel
manufacturer product page::Click here
radial dynamic load capacity::4900 N
